2/4 Wire Conventional Fire Alarm Control Panel fo | RFQ Sourcing Details
Alarm Panels · Quote on request
This is a product procurement detail page: check specs, images, category context and related sourcing paths before sending an RFQ.
Product specs
Buyer's Digest
Use this page as a product-first sourcing checkpoint before sending an RFQ. Category: Alarm Panels. Confirm application fit, capacity, materials, destination, lead time and compliance requirements before comparing suppliers.
Original product description
Cheap 2/3/4 Wire Conventional Fire Alarm Control Panel for fire alarm system Fire alarm control panel SR-P01-4 4 zones conventional fire alarm control panel SR-P01-8 8 zones conventional fire alarm control panel SR-P01-16 16 zones conventional fire alarm control panel The SR-P01 Series Conventional Fire Alarm Control Panel is a 24 volt, four to sixteen-zone, Class B, Conventional Fire Alarm Control Panel.
Designed exclusively to meet the latest market requirements and future ULC codes, the highly cost-effective SR-P01 Series can be used in a variety of low- to mid-sized applications.
Main Features: Four, Eight, Sixteen Zone Style B (Class B) Initiating Device Circuits (IDCs), All zones accept two-wire smoke detectors and any normally-open . Two Supervisory Input with DC12V output, ideal to connect security alarm devices. Three General Alarm, Trouble and Supervisory, Form A Relay Output.
One, Two, Four Built-in Sound Output, Style Y (Class B) Notification Appliance (Signal) Circuits (NACs), NACs may be programmed: Silenceable or Non-Silenceable. 3.0 amps of total system power. Resettable DC24V & Non-resettable DC24V Output. Zone Input Short Circuit can be set to "Alarm" or " Fault" mode.
RS485 Communication Port (optional). Automatic/Manual mode can be programmed. Disable/Enable control per Zone (IDC) can be programmed. Disable/Enable Sound Output(NACs) can be programmed. Technical specification: AC POWER: 220VAC, 50 Hz. BATTERY: Sealed lead-acid batteries only.
Maximum charging circuit: 27.6VDC @ 0.8 amp for normal flat charge. Maximum battery charger capacity: 18AH battery. NOTE: Two 10AH batteries can be housed in the cabinet. Larger batteries require a separate battery box. Total DC24V system power: 3.0 amps. Maximum current per NAC: 1.25 amps.
Maximum battery charging capability: 18 AH. Resettable four-wire smoke detector power output. Non-resettable power output.
Integral Form-A Alarm, Trouble and Supervisory relays, rated at: 2.0 amps @ 30 VDC (resistive), 2.0 amps @ 30 VAC (resistive) Product Pictures : Model NO: SR-P01-16 Usage Fire Certification CE Alarm Volume (within 1m) ≥80dB Networking Mode Wire Wiring Mode Sub-Line System Color Red Fire Panel Type Conventional Zone Number 4 Zone, 8 Zone, 16 Zone Optional Net Weight 7.8kg;Size: 48.00cm * 42.00cm * 18.50cm Package Gross Weight 10.000kg Lead Time 15 days (1 - 50 Pieces) To be negotiated ( > 50 Pieces);Transport Carton;Specification: 220VAC, 50 Hz.;Trademark: SUMRING;Origin: China;HS Code: .
Wire | Applications and Buyer Notes
Wire is organized as a sourcing-ready Alarm Panels reference. The page combines visible product or company data with structured procurement cues so buyers can compare application fit, specifications, quantity, quality requirements and lead-time questions befor
Applications
- Initial shortlist building for related product or supplier options.
- Specification and application fit review before bulk purchasing.
- Category, keyword and detail-page comparison before sending an RFQ.
Key specifications
- Category
- Alarm PanelsBased on visible page data; confirm exact value in the RFQ.
- Unit
- setBased on visible page data; confirm exact value in the RFQ.
- Size
- 48.00cm * 42.00cm * 18.50cm Package Gross Weight 10.000kg Lead Time 15 days-50 PBased on visible page data; confirm exact value in the RFQ.
- Type
- Conventional Zone Number 4 Zone, 8 Zone, 16 Zone Optional NetBased on visible page data; confirm exact value in the RFQ.
- Color
- Red Fire PanelBased on visible page data; confirm exact value in the RFQ.
- Usage
- FireBased on visible page data; confirm exact value in the RFQ.
- Origin
- ChinaBased on visible page data; confirm exact value in the RFQ.
- Weight
- 7.8kgBased on visible page data; confirm exact value in the RFQ.
Buyer tips
- State quantity range and split-delivery needs before price comparison.
- Add certification, material or inspection standards when they affect acceptance.
- For time-sensitive projects, include target arrival date and destination.
- For special applications, describe operating condition, installation environment and duty cycle.
FAQ
What should buyers confirm first?
Confirm application, specification, quantity, destination and lead-time requirements before comparing offers.
Can buyers inquire when specs are incomplete?
Yes. Add model, material, size, use case and inspection needs in the RFQ to make replies comparable.
How should this listing be evaluated?
Check title, category, specifications and related keywords against the actual sourcing requirement.
Source mix: ugc
Key specifications
Product sourcing keywords
These terms come from the title, visible copy and specifications, and link into matching aggregate pages.
Continue from this detail page into sourcing structure
These links connect the detail page back to category hubs, procurement aggregates and knowledge pages so new inventory is not isolated.
This URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path CompanyThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 1 0000 Storage Ip65 Waterproof Metal Touch Screen Wiegand Input Rfid Vehicle Access Control SystemThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 1000 Fingerprint And 10000 Id Card Waterproof Access Control System Ma300 Fingerprint And AccessThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 10000mah Power Bank With Motion Detection 1080p Hd 2 4g Wifi Home Security CameraThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 125khz Fingerprint Wiegand 26 Rfid Reader Standalone Access ControlThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Alarms And Perimeter Security categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Cctv And Video Surveillance categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Turnstiles Locks And Intercoms categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Access Control Suppliers sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Security Equipment Exporters sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Cctv Camera Manufacturers sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path AboutThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path ApplicationThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
2-Wire 16 Zones Conventional Fire Alarm Control Panel for Fire Alarm Systems - Fire Alarm Control PaRequest Quote4-16 Zone Conventional 2-Wire Fire Alarm Control Panel for Fire Alarm Systems - Fire Alarm Systems aRequest Quote
Building-Use 8 Zones Conventional Fire Alarm Control Panel for Fire Alarm Control System - Smoke DetRequest Quote

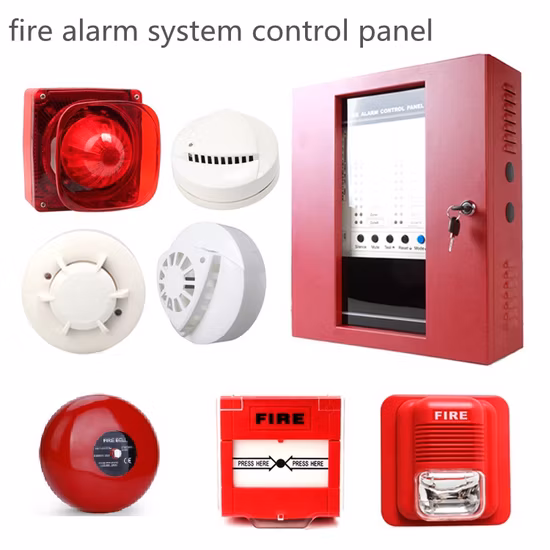

Sumring 220V Conventional Control Panel for Fire Alarm System - Control Panel and Fire Alarm ControlRequest Quote
Conventional 8 Zone Fire Alarm Control Panel for Fire Alarm System - 2026 Fire Alarm Control PanelRequest Quote

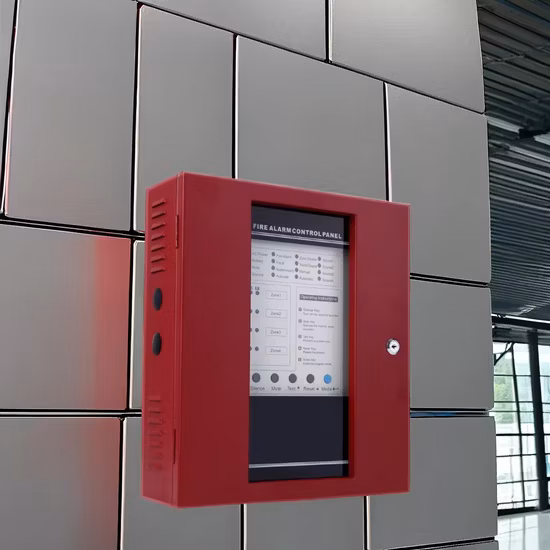

Facp 4 Zone Optical Firefighting Fire Alarm Control Panel for Fire Alarm Systems for Smoke DetectorRequest QuoteAccessShieldHub related sourcing paths
