Original product description

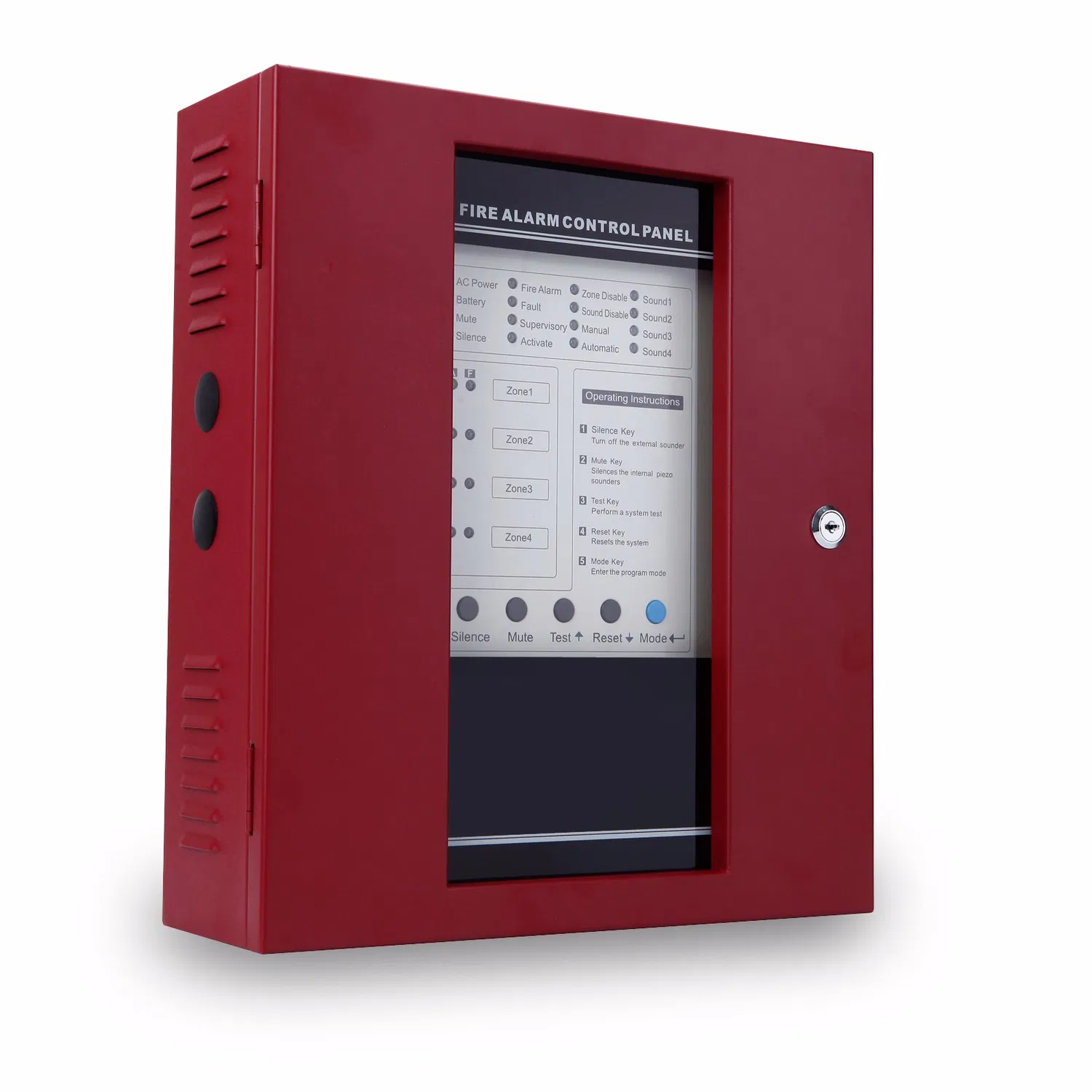

Factory FACP Fire Alarm Detection Control Panel for fire alarm system Fire alarm control panel SR-P01-4 4 zones conventional fire alarm control panel SR-P01-8 8 zones conventional fire alarm control panel SR-P01-16 16 zones conventional fire alarm control panel The SR-P01 Series Conventional Fire Alarm Control Panel is a 24 volt, four to sixteen-zone, Class B, Conventional Fire Alarm Control Panel.
Designed exclusively to meet the latest market requirements and future ULC codes, the highly cost-effective SR-P01 Series can be used in a variety of low- to mid-sized applications.
Main Features: Four, Eight, Sixteen Zone Style B (Class B) Initiating Device Circuits (IDCs), All zones accept two-wire smoke detectors and any normally-open . Two Supervisory Input with DC12V output, ideal to connect security alarm devices. Three General Alarm, Trouble and Supervisory, Form A Relay Output.
One, Two, Four Built-in Sound Output, Style Y (Class B) Notification Appliance (Signal) Circuits (NACs), NACs may be programmed: Silenceable or Non-Silenceable. 3.0 amps of total system power. Resettable DC24V & Non-resettable DC24V Output. Zone Input Short Circuit can be set to "Alarm" or " Fault" mode.
RS485 Communication Port (optional). Automatic/Manual mode can be programmed. Disable/Enable control per Zone (IDC) can be programmed. Disable/Enable Sound Output(NACs) can be programmed. Technical specification: AC POWER: 220VAC, 50 Hz. BATTERY: Sealed lead-acid batteries only.
Maximum charging circuit: 27.6VDC @ 0.8 amp for normal flat charge. Maximum battery charger capacity: 18AH battery. NOTE: Two 10AH batteries can be housed in the cabinet. Larger batteries require a separate battery box. Total DC24V system power: 3.0 amps. Maximum current per NAC: 1.25 amps.
Maximum battery charging capability: 18 AH. Resettable four-wire smoke detector power output. Non-resettable power output. Integral Form-A Alarm, Trouble and Supervisory relays, rated at: 2.0 amps @ 30 VDC (resistive), 2.0 amps @ 30 VAC (resistive) Product Pictures
