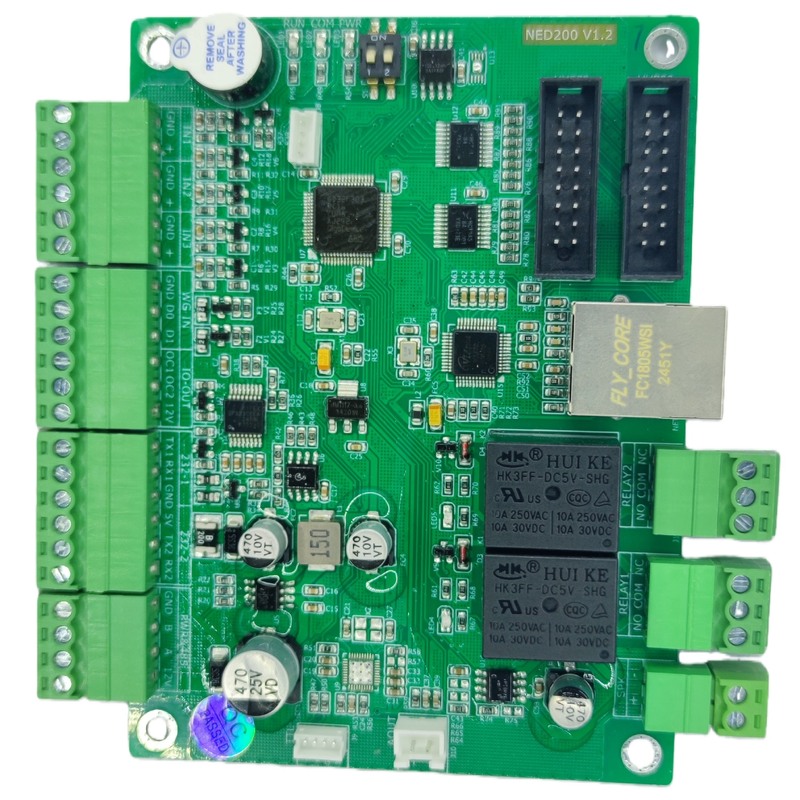

Detail Information Place of Origin: Shenzhen China Brand Name: JUTAI Certification: CE Model Number: NED 200 Communication Interface:: TCP/IP, RS232, RS485, TTL, Wiegand 26/34 Operating Voltage:: DC12V Operating Current:: 2A MAX Operating Temperature:: -40℃ ~ 85℃ Overall Dimensions:: 115mm (L) * 85mm (W) * 15mm (H) Mounting Hole Spacing:: 105mm (L) * 75mm (W) IO Interface:: 2IO Input, 2OC IO Output, 2Relay IO Output Display Screen Interface:: HUB75, HUB08 Power Amplifier Output:: 1 Port, 4Ω 8W Supported Protocols:: RS485, TCP, MQTT Minimum Order Quantity: Support 1-10 pcs for sample Price: Negotiation Packaging Details: 1 Set 1 Cartoon Delivery Time: 5-8 work days Payment Terms: T/T, Western Union, Paypal, Alipay Supply Ability: 2000 set per month Highlight: Industrial LED drive board with RS485 , LED display control core with Ethernet , Parking lot automation LED drive board Product Description NED200 LED Display Driver Board with Dual QR Code Display (Long/Short Distance), Voice Broadcast & Remote IAP Upgrade for Commercial Complexes & Scenic Areas The NED200 LED Display Driver Board is a professional intelligent control device tailored for commercial complexes and scenic areas, featuring dual QR code display modes (long/short distance) to meet diverse interactive needs.
As a core link between upper-level systems and LED display terminals, it integrates voice broadcast and remote IAP upgrade functions, providing a seamless and efficient control solution for commercial and scenic display scenarios.
Its dual QR code design supports full-screen QR codes for long-distance scanning (2-5m) and 3-line QR codes for short-distance scanning (0.5-2m), enabling functions like scan-to-get mall coupons, scenic spot tour routes, and navigation maps, while the 4-line independent control supports up to 80 bytes per line and over 100 languages, perfectly displaying floor navigation, activity notices, and scenic spot introductions.
Equipped with high-performance voice broadcast and remote IAP upgrade capabilities, the NED200 LED Display Driver Board enhances operational convenience and user experience for commercial complexes and scenic areas. It supports sequential and immediate voice play modes, with 8MB storage for up to 256 voice files, enabling real-time voice prompts for promotions, safety guidelines, and visitor reminders.
The remote IAP upgrade function allows seamless updates via TCP, browser, or cloud platform, adding new functions and optimizing logic without on-site operations. With industrial-grade reliability (-40℃~85℃ wide operating temperature, ESD and overcurrent protection), it operates stably in indoor and outdoor scenarios, seamlessly linking with mall management systems and scenic area equipment to boost management efficiency and visitor satisfaction.
Core Advantages * Multi-Protocol Communication: Supports RS485, Ethernet and MQTT three mainstream communication methods, easy to connect with various management systems * 4-Line Independent Control: Realize independent display of 4-line LED screen, single line max 80 bytes, support multi-language display (100+ languages worldwide) * Dual QR Code Display Modes: Full-screen QR code (2-5m long-distance scanning) and 3-line QR code (0.5-2m short-distance scanning) for different scenario needs * Integrated Interactive Functions: Integrate voice broadcast control, relay linkage and IO status reading, realize one-stop control of LED display and peripheral devices * Industrial Grade Reliability: -40℃~85℃ wide operating temperature, with reverse connection, ESD/pulse and overcurrent protection, suitable for harsh outdoor/industrial environments * Flexible Expansion & Upgrade: Support remote IAP upgrade (TCP/browser/cloud), 8MB voice storage (max 256 files), and can link barriers, sensors, voice equipment, etc.
* Real-Time Time Display: Support custom time format overlay display, automatic real-time update without manual operation Key Technical Parameters Basic Electrical & Physical Parameters * Operating Voltage: DC12V (with reverse connection protection) * Operating Current: 2A MAX * Operating Temperature: -40℃ ~ 85℃ (relative humidity
Specifications
| Brand Name | JUTAI |
|---|---|
| Certification | CE |
| Interface | 1 port, Wiegand 26/34 adaptive * IO Input: 2 channels, non-isolated, 0-5V signal range * IO Output: 2OC non-isolated (max 12V/0.2A) + 2relay isolated (250VAC 10A / 30VDC 10A) * |
| MOQ | Support 1-10 pcs for sample |
| Model Number | NED 200 |
| Origin | Shenzhen China Brand Name: JUTAI |
| Packaging Details | 1 Set 1 Cartoon |
| Payment Terms | T/T, Western Union, Paypal, Alipay |
| Power | Amplifier Output: 1 port, 4Ω 8W * LED Display |
| Price | Negotiation |
Parameters
| Brand Name | JUTAI |
|---|---|
| Certification | CE |
| Interface | 1 port, Wiegand 26/34 adaptive * IO Input: 2 channels, non-isolated, 0-5V signal range * IO Output: 2OC non-isolated (max 12V/0.2A) + 2relay isolated (250VAC 10A / 30VDC 10A) * |
| MOQ | Support 1-10 pcs for sample |
| Model Number | NED 200 |
| Origin | Shenzhen China Brand Name: JUTAI |
| Packaging Details | 1 Set 1 Cartoon |
| Payment Terms | T/T, Western Union, Paypal, Alipay |
| Power | Amplifier Output: 1 port, 4Ω 8W * LED Display |
| Price | Negotiation |
