SJS-TDB02 Automatic 304 Stainless Steel Swing Gat | RFQ Sourcing Details
Access Control Systems · Quote on request
This is a product procurement detail page: check specs, images, category context and related sourcing paths before sending an RFQ.
Product specs
Buyer's Digest
Use this page as a product-first sourcing checkpoint before sending an RFQ. Category: Access Control Systems. Confirm application fit, capacity, materials, destination, lead time and compliance requirements before comparing suppliers.
Original product description
The SJS-TDB02 is an automatic swing gate turnstile designed for controlled pedestrian entry and exit. Its cabinet is specified as 304 stainless steel, and the unit is listed for indoor or outdoor operation.
The supported lane width is 60–90 cm, allowing the passage size to be selected around the intended traffic flow and site layout. Access can be configured around ID card, facial-recognition, or fingerprint verification.
Available passage arrangements include verification at both entry and exit, verified entry with infrared exit, and one-way or two-way traffic.
The exact reader, recognition device, controller, software, and credentials included with an order are not defined in the supplied specifications and should be confirmed during procurement. The system uses an automatic, single-movement swing-gate mechanism and lists an RS485 communication interface.
Electrical specifications include AC 220 V ±10% input or DC 24 V operation, 50 W output power, and 2 A rated current. Door-opening time is adjustable from 1 to 60 seconds. The stated operating range is -20°C to +60°C, with humidity up to 85% and altitude up to 1,000 m.
Service life is stated as at least 5,000,000 operations, and the insulation rating is Class F. The listed product dimensions are 140 × 16 × 98 cm. Packaging information specifies an export-standard wooden carton, a package size of 98 × 16 × 140 cm, and a gross package weight of 35 kg.
Because installation geometry is not fully documented, buyers should request a dimensioned drawing showing cabinet orientation, gate-leaf dimensions, fixing points, cable entries, opening direction, and required clearances before approving the site plan.
Customization from samples or designs, full customization, minor modifications, and OEM/ODM service are listed as available. A 12-month standard warranty and on-site or remote training options are also stated.
Buyers should obtain written confirmation of the selected configuration, included hardware, control logic, interface protocol, safety behavior, spare-parts package, warranty coverage, training scope, production schedule, and shipping terms before placing an order.
SJS-TDB02 | Applications and Buyer Notes
SJS-TDB02 is organized as a sourcing-ready Access Control Systems reference. The page combines visible product or company data with structured procurement cues so buyers can compare application fit, specifications, quantity, quality requirements and lead-time
Applications
- Initial shortlist building for related product or supplier options.
- Specification and application fit review before bulk purchasing.
- Category, keyword and detail-page comparison before sending an RFQ.
Key specifications
- Unit
- setBased on visible page data; confirm exact value in the RFQ.
- Model
- SJS-TDB02Based on visible page data; confirm exact value in the RFQ.
- Movement
- Single movementBased on visible page data; confirm exact value in the RFQ.
- Lane width
- 60–90 cmBased on visible page data; confirm exact value in the RFQ.
- Output power
- 50 WBased on visible page data; confirm exact value in the RFQ.
- Product type
- Automatic swing gate turnstileBased on visible page data; confirm exact value in the RFQ.
- Service life
- At least 5,000,000 operationsBased on visible page data; confirm exact value in the RFQ.
- Passage modes
- Verified entry and exit;verified entry with infrared exit;one-way or two-way pasBased on visible page data; confirm exact value in the RFQ.
Buyer tips
- State quantity range and split-delivery needs before price comparison.
- Add certification, material or inspection standards when they affect acceptance.
- For time-sensitive projects, include target arrival date and destination.
- For special applications, describe operating condition, installation environment and duty cycle.
FAQ
What should buyers confirm first?
Confirm application, specification, quantity, destination and lead-time requirements before comparing offers.
Can buyers inquire when specs are incomplete?
Yes. Add model, material, size, use case and inspection needs in the RFQ to make replies comparable.
How should this listing be evaluated?
Check title, category, specifications and related keywords against the actual sourcing requirement.
Source mix: ugc
Key specifications
Product sourcing keywords
These terms come from the title, visible copy and specifications, and link into matching aggregate pages.
Continue from this detail page into sourcing structure
These links connect the detail page back to category hubs, procurement aggregates and knowledge pages so new inventory is not isolated.
This URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path CompanyThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 1 0000 Storage Ip65 Waterproof Metal Touch Screen Wiegand Input Rfid Vehicle Access Control SystemThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 1000 Fingerprint And 10000 Id Card Waterproof Access Control System Ma300 Fingerprint And AccessThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 10000mah Power Bank With Motion Detection 1080p Hd 2 4g Wifi Home Security CameraThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 125khz Fingerprint Wiegand 26 Rfid Reader Standalone Access ControlThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Alarms And Perimeter Security categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Cctv And Video Surveillance categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Turnstiles Locks And Intercoms categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Access Control Suppliers sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Security Equipment Exporters sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Cctv Camera Manufacturers sourcing pathThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path AboutThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path ApplicationThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
SJS-TDB01 Automatic Swing Turnstile Gate with 600 mm LaneRequest Quote
Streamlined Turnstile and Swing Gate Access Control System for Efficiency - Access Control System anRequest Quote

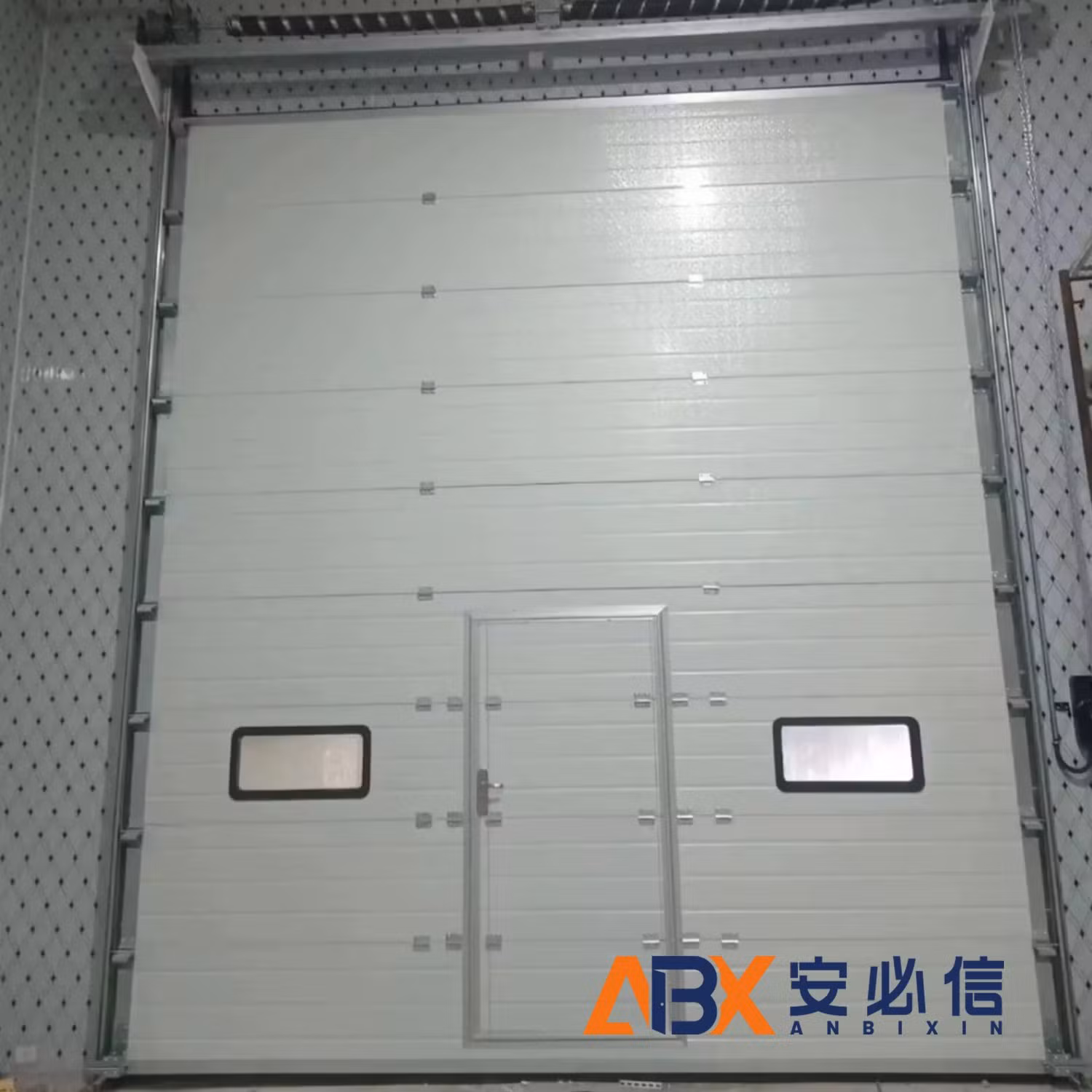

Automatic Sliding Gate System for Vehicle Access Control and Security - Steel Garage Door and AluminRequest Quote
